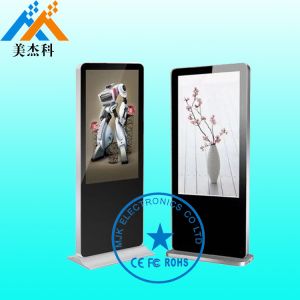

High Resolution Touch Screen Digital Signage Display LG Screen For
Supermarket
Quick Detail:
Place of original: Shenzhen Guangdong China(mainland) creen size: 42 "
Resolution: 1920 (RGB) × 1080 [FHD]
Brightness (cd / m2): 500 (Typ.)
Best angle: full view
Viewing angle: 89/89/89/89 (Min.) (CR≥10)
Point distance: 0.227mm (H) x 0.227mm (W)
Number of colors: 16.7M / 1.07B, 95% [CIE1931]
Screen Weight: 6.30Kgs (Typ./Max.)
Signal system: LVDS (2 ch, 10-bit), terminal, 51 pins
Maximum rated: Storage temperature: -20 ~ 60 ° C Operating
temperature: 0 ~ 50 ° Cw
Response speed: 6 (Typ.) (G to G) ms
Backlight type: WLED, 30K hours, no drive
| CPU: RK3288, quad-core, frequency 1.6GHz
Memory: 1 / 2G (optional)
Built-in memory: EMMC FLASH 8G (optional)
Built-in ROM: 2KB EEPROM
Decoding resolution: up to 1080P
Operating system: Android 4.4 above
Play mode: support for the cycle, timing, spots and other playback
modes
Network support: 3G, Ethernet, WiFi support, wireless peripherals
expansion
Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and
so on
Picture format: support BMP, JPEG, PNG, GIF |
Description:
1,Professional bracket sets for easy installation on wall,
supermarket shelf, lift, showcase, furniture and tabletop etc.
2. Anti-theft device effectively prevents the player and memory
card from being stolen or misuse in public place.
3. No DVD-style mechanical movement, hence more durable and
suitable for long-hour advertising playing.
4. With full HD 21.5 inch (16:9) TFT LCD screen, plays from SD, CF
card and USB flash drive.
5, Welcome to customize any size and any color.
Main Features
1, Image playback: rotate, slide show, background music etc...
2, Support 5 groups of auto power-on/off timer, able to set those 5
groups of time 1 day and 7 days in 1week.
3, Automatically generate play logs, file playback status query
4, Can be set split-screen 1to8 area for broadcasting video w/
photo, w/ other display of logo/ date/ weather/ roll-text or
subtitles.
5, Can set several assistant of administrator with limits of
authority.
6, Can set fixed time download, real-time download. And keep
broadcasting when downloading.
7, Support terminal set password, for protect viciously control
from outside.
8, Support modify terminal IP by server software or by remote
control.
Applications:
Widely used in the bus, building and lift room, supermarket, public
places, train etc.
Specifications :
LCD Spec. | LCD Panel Type | 42Inch, 16:9 |
LCD Resolution | 1920*1080 |
Viewing Angle | 178°/178° |
Color | 16.7M |
Response Time | 6ms |
Contrast Ration | 3000:1 |
Brightness(cd/m2) | 500 |
Player Spec. | Processor | ARM based Multimedia processor |
Network | 10/100 Mbps Fast Ethernet |
Storage | Default 8GB SD card (Maximum up to 128GB) |
Wireless | Built-in module of WiFi 802.11b/g or 3G (Optional) |
USB Host | USB2.0 x 1, USB1.0 x 1
|
Power Input | AC 100V~240V 50/60 Hz |
Software Spec. | Media Support | Video / Audio / Picture / Scrolling text/Streaming Video |
Video format | MOV, AVI, MP4, DVD, ASF, WMV, MKV, RM, RMVB, TS, DAT, MPG, MPEG,VOB |
Audio format | MP3, WMA, WMA Pro, AAC, ADPCM, OGG Vorbis, Dolby Digital AC3, Dolby Digital Plus, FLAC |
Picture format | JPEG, BMP, GIF, PNG, TIFF |
Scrolling Message (Ticker) | Horizontal, Adjustable speed, effect, font and background color |
Local Time and Date | Support |
Multiple Zones Display | Support multiple zones on screen |
Others | Player Dimension | 794 x 484 x 110 mm |
Power Consumption | 120W |
Environmental Factors | Operating temperature: 0-55°C |
Relative humidity: 20%-80% |
Color | Silver, Black or any other color |
Speaker | built with 2 stereo speaker |
Accessories | Wall-mount plate, Remote, Key, Power Cord |
Certification | CE, RoHS, FCC |
Competitive advantages:
1.Excellent team. All the sales in our international sales team own
a univerity degree. They have good condition in English, be full of
enthusiasm, diligent and responsible for customers.
2. All the products we will check the quality before delivery no
matter the samples or bulk order.
3.Stable quality. 1 year warranty for panel, 3 years in parts.
4. Proven technique. We have our own D&R department for our
customers do custom functions accordingly.
